Description

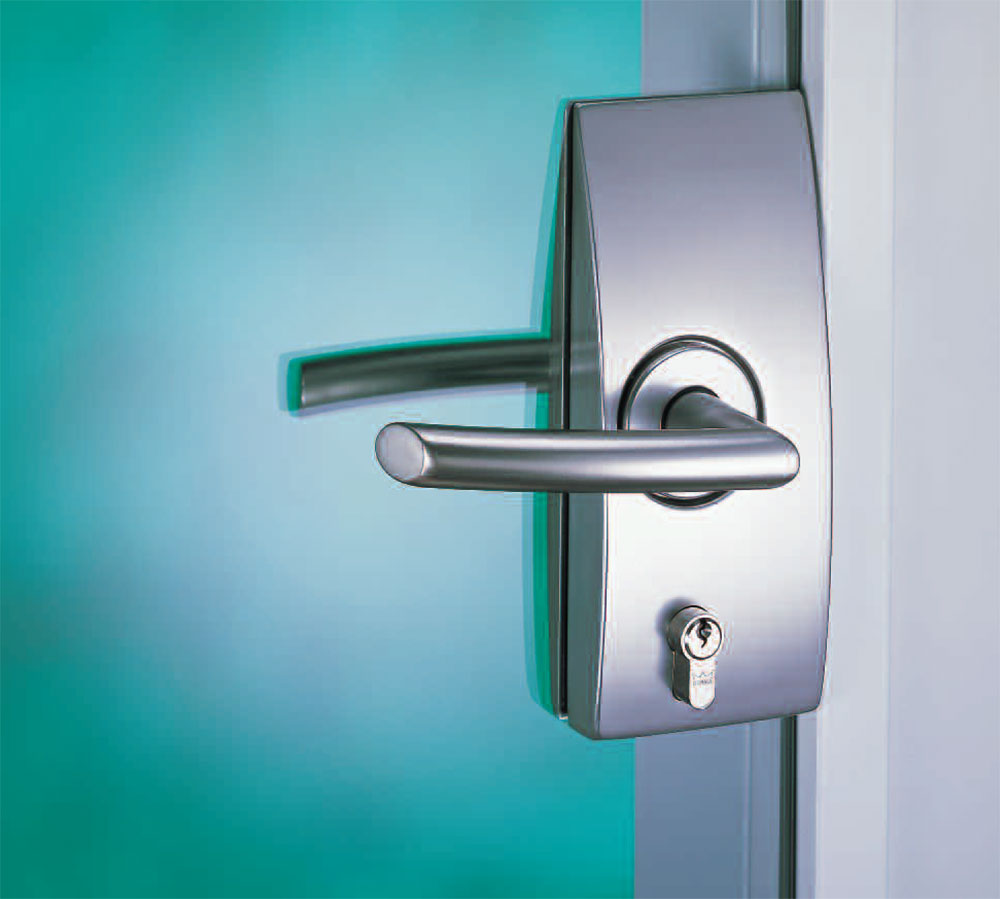

ARCOS Office is designed
for glass thicknesses of 8 or
10 mm and a frame rebate
depth of 24 mm (for 8 mm
glass thickness) and 26 mm
(for 10 mm glass thickness).
There is a selection of various
hinge types and lever handle
designs with or without rose.
And a lever handle specially
designed for the ARCOS
range completes the
integrated design concept.
It repeats the radius of the
fitting for perfect styling
harmony. Standard types of
fittings in the materials and
surface finishes indicated
are available from stock.
Special finishes with
anodised colours and other
coatings can also be quickly
provided on request.
Most of these lock fittings
comply with DIN 18251,
Class 3, in relation to their
type approval testing –
200,000 operating cycles of
the latch function and
50,000 operating cycles of
the locking bolt.
Furthermore the lock was
tested successfully by a
neutral testing institute with
500,000 latch and 100,000
locking bolt operating
cycles.
Remark from
DIN 18251, Class 3: “The
locks are recommended for
private entry doors and
public buildings (so called
project locks).”
